● Dual core(thread) ● Dual core(4thread) ● Quad core(thread) ● 6 core(thread)
HOST Maker Model CPU AES-NI Core/thread MEM TDP Passmark
dsl skynew IN-1 N2940 - 4/4 4G 7.5W 1050
puma PROTECTLI Protectli Vault–4 J3160 yes 4/4 4G 6W 1258
uncia ECS LIVAZ-4/32 N3350 yes 2/2 4G 6W 1109
red XCY X30 N2840 - 2/2 4G 7.5W 674
manx KODLIX GK45 J4105 yes 4/4 4G 10W 2905+
cymric ASRock J3455-ITX J3455 yes 4/4 8G 10W 2252
baycat Fujitsu TX1310 M3 E3-1225v6 yes 4/4 16G 73W 6321
gazilla ASRock 4X4 BOX-4800U R7 4800U yes 8/16 16G 15W 16802
felis ASRock J4205-ITX J4205 yes 4/4 8G 10W 2426
ocelot QSL SRT-025403 J4125 yes 4/4 8G 10W 2963
black skynew IN-1 N2940 - 4/4 4G 7.5W 1050
leo KODLIX GD41 N4100 yes 4/4 16G 6W 2423
Linux Workstation
lynx ASRock 4X4 BOX-4800U R7 4800U yes 8/16 24G 15W 16802
neko Dell 9020USFF i5-4590S yes 4/4 8G 65W 5364
- LibreElec -
Kodi Intel BOX NUC7I5BNH i5-7260U yes 2/4 8G 15W 3976
Windows Workstation
In Storage
more fine X36 J3160 J3160 yes 4/4 4G 6W 1258
Miniforum GK41 J4125 yes 4/4 8G 10W 2963
XCY X30G Pentium 3805U - 2/2 4G 15W 1180
Old IN-1 CPU is Pentium N2940, No AES-NI Passmark: 1050 TDP 7.5W max.
New IN-1 CPU is Pentium N3710, AES-NI Passmark: 1383 TDP 6W max. and NIC I226 2.5Gbps
Lhost
2409:250:3240:200::/64, 2001:2c0:db16:eb04::/64, 219.117.250.224/28, 2500Mb/s, Debian
HOST I/F WAN NGN or 2.5G LAN I/F WAN I/F LAN I/F LAN,Rmks
dsl enp1s0 192.168.32.1 ipip6 shared.user.transix.jp enp2s0 192.168.16.1 enp3s0 192.168.1.1
2409:250:3240:3e00:ra... fd00:8fe::1 fd00:1fe::1
enp4s0 192.168.8.1 IPoE, ds light
fd00:4fe::1
puma enp1s0 192.168.32.254
ppp0
enp3s0
 219.117.250.225 enp4s0 192.168.1.254 enp2s0 192.168.16.254
2409:250:3240:3e00::fe 2001:2c0:db16:eb04::fe fd00:1fe::fe fd00:8fe::fe
uncia enp1s0 219.117.250.226 enp3s0 192.168.1.10 wlp2s0 192.168.16.10
2001:2c0:db16:eb04::a fd00:1fe::a fd00:8fe::a
red enp1s0 219.117.250.227 enp2s0 192.168.1.11 LAN1 - enp2s0
2001:2c0:db16:eb04::b fd00:1fe::b LAN2 - enp1s0
cymric enp7s0 219.117.250.228 enp6s0 192.168.1.3 enp1s0 192.168.16.3
2001:2c0:db16:eb04::3 fd00:1fe::3 fd00:8fe::3
manx eno1 10Mb 219.117.250.229 enp3s0 192.168.1.4
2001:2c0:db16:eb04::4 fd00:1fe::4
baycat enp2s0 192.168.8.14 eno2 219.117.250.230 enp1s0f0 192.168.1.1.14 enp1s0f1 192.168.16.14
fd00:4fe::e 2001:2c0:db16:eb04::e fd00:1fe::e fd00:8fe::e
gazilla enp1s0 __ enp2s0 219.117.250.231 _
fd00:4fe::__ __ fd00:8fe::__
black enp1s0
ppp0
enp3s0
 2001:2c0:db16:eb04::1 enp4s0 192.168.1.253 enp2s0 192.168.16.253
192.168.32.253 fd00:1fe::fd fd00:8fe::fd
felis enp1s0 219.117.250.234 enp4s0 192.168.1.18
2001:2c0:db16:eb04::12 fd00:1fe::12
ocelot enp3s0 192.168.8.19 enp1s0 219.117.250.235 enp2s0 192.168.1.19 enp4s0 192.168.16.19
fd00:4fe::13 2001:2c0:db16:eb04::13 fd00:1fe::13 fd00:8fe::13
dwelf enp3s0 192.168.8.105 enp1s0 219.117.250.236 enp4so 192.168.1.105 enp2s0 192.168.16.105
fd00:4fe::69 2001:2c0:db16:eb04::69 fd00:1fe::69 fd00:8fe::69
leo enp3s0 219.117.250.238 eno1 192.168.1.22 wlo2 192.168.16.22
2001:2c0:db16:eb04::16 fd00:1fe::16 fd00:8fe::16
lynx enp2s0f0 192.168.32.107 ipip6 shared.user.transix.jp enp1s0 192.168.8.107
2409:250:3240:3e00:2d2:12dc:fe3e:67ef fd00:4fe::6b
neko eno1 192.168.32.106
2409:250:3240:3e00:ra...
libreELEC eth0 wlan0 192.168.1.30
L3770CDW 192.168.1.60 wlan0 Not used

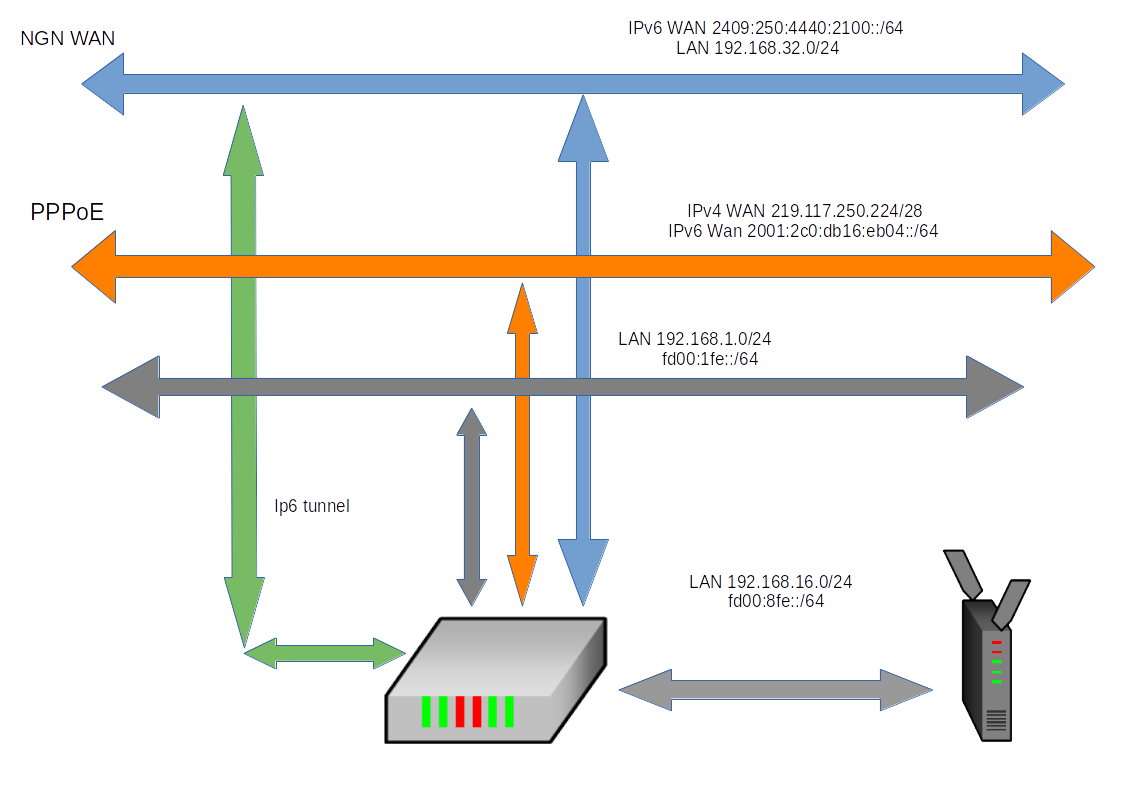

Network eth 2409:250:3240:3e00::/64 PPP 219.117.250.224/28 eth 192.168.0.0/18
192.168.32.0/24 2001:2c0:db16:eb04::/64 fd00::/16
HostIP
transix fixed IP: ip link set dev mtu 1460 (or 1453) and set mss 1420
